Product Description

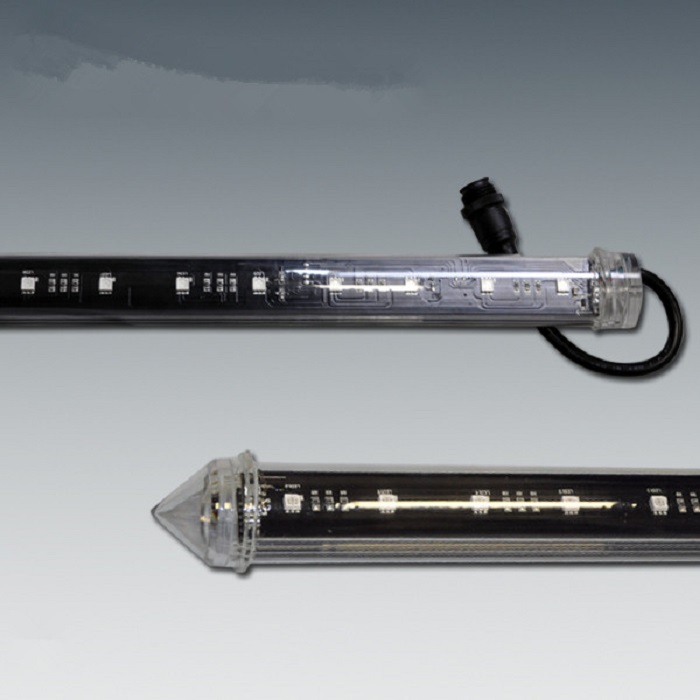

1M DMX 3D Tube
1：DC15V 16W 64LEDs 16 pixels IP65
2：Madrix Compatible DMX 512 protocol
3：Music Controllable Sound Activated
4：Light and audio controlled synchronously.
5：Double side light source 360°viewing 3D effect
Detail Specification:
Parameters |
Description |
|||
Model No. |
LW-DMX3DT-D3208 |
LW-DMX3DT-D6416 |
LW-DMX3DT-D9624 |
LW-DMX3DT-D12832 |
Dimension |
500 x 30mm |
1000 x 30mm |
1500 x 30mm |
2000 x 30mm |
LED QTY |
32pcs SMD RGB 5050 |
64pcs SMD RGB 5050 |
96 pcs SMD RGB 5050 |
128pcs SMD RGB 5050 |
Pixel QTY |
8 |
16 |
24 |
32 |
View Angle |
360° |
360° |
360° |
360° |
Voltage |
DC15V |
15V |
DC15V |
15V |
Max Power |
8W |
16W |
24W |
32W |
Max. Current |
600mA |
1000mA |
1600mA |
2100mA |
Color |
RGB Full color |
|||
Protocol |
DMX512 |
|||
LED Source Life |
50'000hours based on LED manufactures' test data |
|||
Housing |
clear |
|||
Protection |
IP65 |
|||
Working Tem. |
-20°c to 50°c |
|||
