Product Description

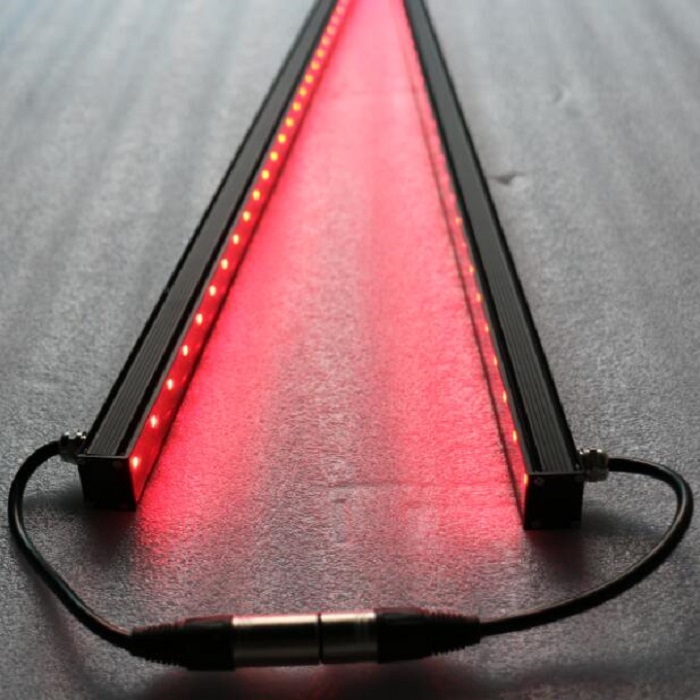

DMX Digital Bar
1：DC12V IP65. 0.5m and 1m available
2：Madrix CompatibleDMX 512 protocol
3：indoor decorative lighting for wallceiling
4：outdoor building facade lighting
5：led digital bar light building
Detailed Specification:
Parameters |
Description: |
|
Product |
0.5m DMX Digital Bar |
1m DMX Digital Bar |
Model No. |
LW-DMXDB-D1608 |
LW-DMXDB-D3216 |
Diameter |
500*27*26mm |
1000*27*26mm |
LED QTY |
24pcs RGB SMD 505048 |
48pcs RGB SMD 5050 |
Pixel QTY |
8 |
16 |
View Angle |
120° |
120° |
Voltage |
DC12V |
DC12V |
Max Power |
6W |
12W |
Max. Current |
500mA |
1000mA |
Cover |
Clear or Frosted |
|
Color |
RGB full color |
|
Protocol |
DMX512 |
|
LED Source Life |
50'000 hours |
|
Protection |
IP65 |
|
Working Tem. |
-20°c to 50°c |
|
Net Weight |
0.33KG/PC |
0.55KG/PC |
