Product Description

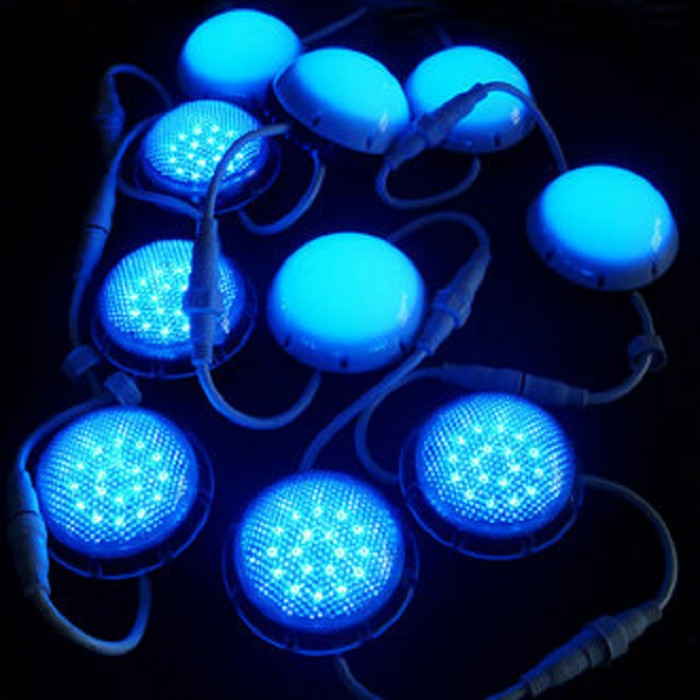

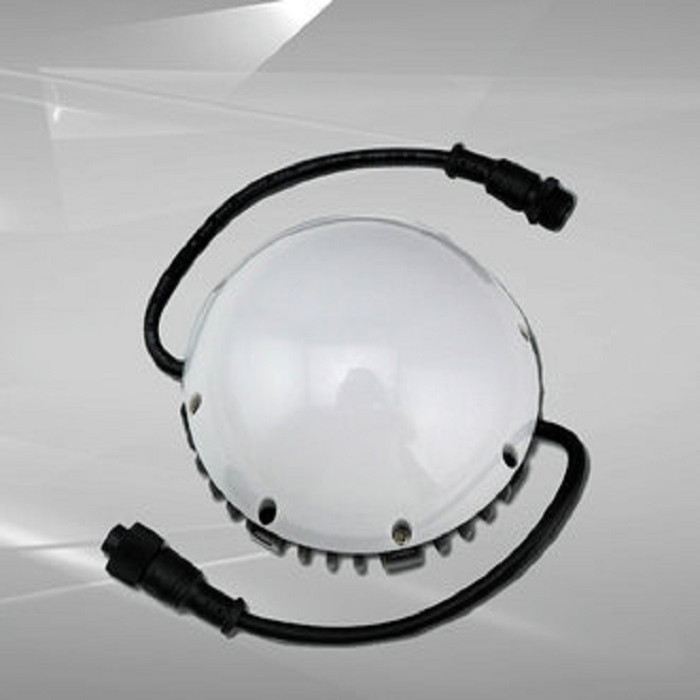

120mm led pixel light
1：DC24V 4.5W. IP65
2：Coated with waterproofing
3：led media facade dot light
4：24v digital rgb led pixels
5：Madrix Compatible DMX512 protocol
Detailed Specification:
Parameters |
Description |
|||
Product |
30mm Pixel |
50mm Pixel |
100mm Pixel |
120mm Pixel |
Model No. |
LW-DMX30DL-D0301 |
LW-DMX30DL-D0301 |
LW-DMX100DL-D1201 |
LW-DMX120DL-D1801 |
Diameter |
30mm |
50mm |
100mm |
120mm |
LED QTY |
3pcs SMD RGB 5050 |
3pcs SMD RGB 5050 |
12PCS SMD RGB 5050 |
18pcs SMD RGB 5050 |
Pixel QTY |
1 |
1 |
1 |
1 |
View Angle |
180° |
180° |
180° |
180° |
Voltage |
DC12V |
12V |
DC24V |
24V |
Max Power |
0.72W |
0.72W |
3W |
4.5W |
Max. Current |
61mA |
61mA |
125mA |
187mA |
Housing |
Clear, Milky |
Milky, Clear or Dot |
Milky or Diamond |
Milky or Dot |
Color |
RGB Full color |
|||
Protocol |
DMX512 |
|||
LED Source Life |
50'000hours based on LED manufactures' test data |
|||
Protection |
IP65 |
|||
Working Tem |
-20°c to 50°c |
|||
Net Weight |
0.25KG/20pcs |
0.09KG/PC |
0.26KG/PC |
0.34KG/PC |
Gross Weight |
14.5KG/1000pcs |
0.12KG/PC |
0.32KG/PC |
0.72KG/PC |
