Product Description

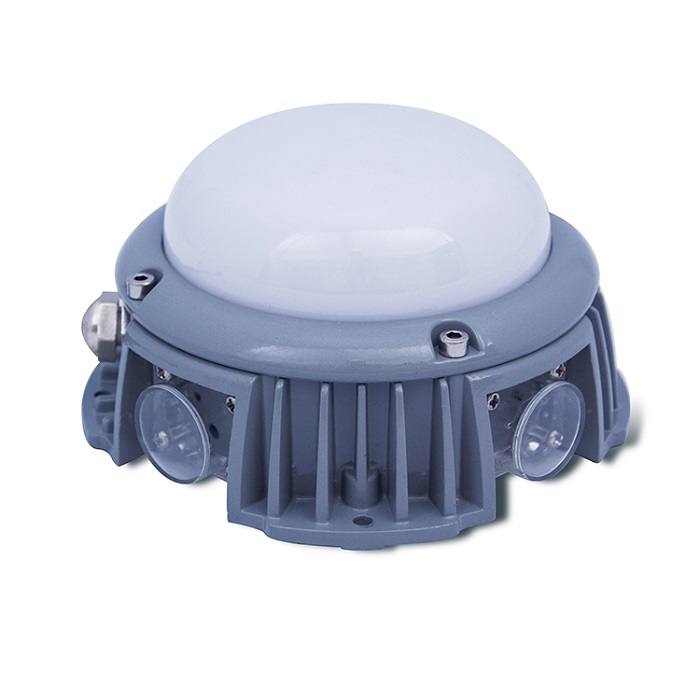

138mm led pixel light
1：DC12V 15W. IP65
2：Coated with waterproofing
3：3W LED 3in1 RGB led
4：12v digital rgb led pixels
5：Madrix Compatible DMX512 protocol
Detailed Specification:
| Parameters | Description: | |
| Product | 138mm Pixel |
70mm Pixel |
| Model No. | LW-DMX138DL-D5W1 | LW-DMX70DL-D3W1 |
| Diameter | 138mm | 70mm |
| LED QTY | 5pc 3in1 high power LED | 1pc 3in1 high power LED |
| Pixel QTY | 1 | 1 |
| View Angle | 120° | 70° |
| Voltage | DC12V | DC12V |
| Max Power | 15W | 3W |
| Max. Current | 125mA | 177mA |
| Housing | Milky | Dot |
| Color | RGB full color | RGB full color |
| Protocol | DMX512 | DMX512 |
| LED Source Life | 50'000 hours | 50'000 hours |
| Protection | IP65 | IP65 |
| Working Tem. | -20°c to 50°c | -20°c to 50°c |
| Net Weight | 0.3KG/PC | 0.27KG/PC |
| Gross Weight | 0.45KG/PC | 0.4KG/PC |
