Product Description

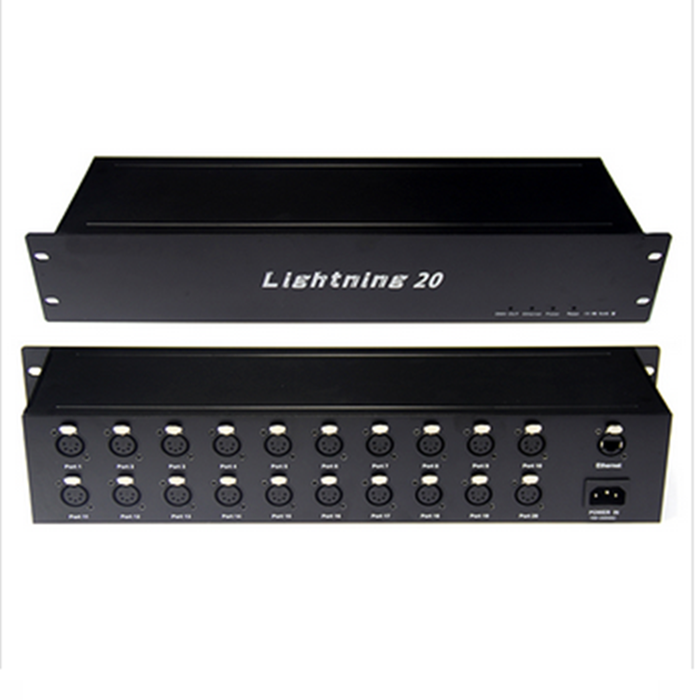

4/12 /20/30 Ports DMX Artnet Controller
1：DMX512 protocol output
2：12 ports support 2040 DMX Pixels
3：Madrix Compatilble
4：Madrix Led light control solution
5：Windows XP/Vista/7/8 Mac OS
Detailed Specification:
Parameter |
Description |
Model |
LW-ANC-12*512 |
Operating System |
Windows XP/Vista/7/8, Mac OS |
Universe Setting |
YES |
Port Qty |
12 |
CPU |
ARM + PFGA |
Support Software |
Madrix, Resolume, Arkaos |
Input Protocol |
Art-NetII, Art-Net III |
Configuration (Web Browser) |
Universe, Ethernet IP Address, Node Name |
Output Protocol |
DMX512 |
Output Connector |
3/5 PIN XLR Female |
Input Isolation |
External Ethernet port Isolated to 2kV |
Output Interface Protection |
TVS,PTC, DMX Output Ground Referenced, +15kV ESD DMX Driver protection |
Main Fuse |
1A Slow Blow |
Main Earthing |
Case connected to Main Earth |
Input Voltage |
AC 90V-250V |
Input Power (max) |
5W |
Working Tem. |
-20°c to 50°c |
Dimension |
1RU(H) x 19’’ Rack (W) x 130mm (D) |
Weight |
1.5KG |
