Product Description
1. Introduction

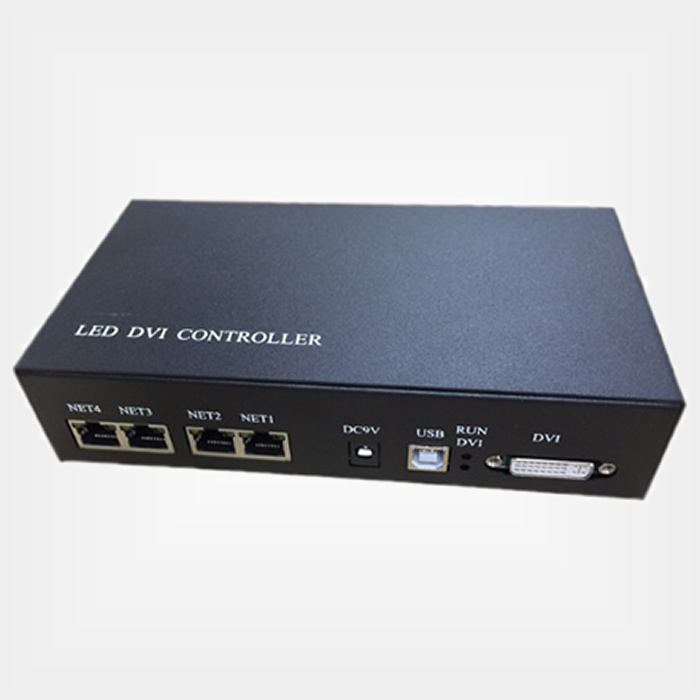

H803TV is an online master controller that transmits data through DVI/HDMI interface and has the features of high speed transmission and large control ability. H803TV can work without software, which means it can be connected to different computers with different operating systems, and also be connected to devices with DVI/HDMI interface. It supports dual-monitor mode, multi-monitor extension mode and duplication mode. Using duplication mode when H803TV is connected to computer.
Auxiliary slave controller is H801RA, H802RA and H801RC. Auxiliary software is “LED studio software” and Madrix.
2. Support Driver Chips
LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716, SM16711, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, INK1003, TM1812, TM1809, TM1804, TM1803, TM1913, TM1914, TM1926, TM1829, TM190, TM1814, BS0901, BS0902, BS0825, BS0815, LY6620, BS0825, LD1510, LD1512, LD1530, LD1532, TLS3001, TLS3002, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595, 6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012, etc.
2. Performance
(1). Each H803TV drives maximum 400000 pixels with four output network ports; each port drives maximum 100000 pixels.
(2). Four ports are separated and configured individually, which means four ports can drive different chips. Four ports control 1020 slave controllers in total, each ports control 255 slave controllers.
(3). Connect video splitter to control part of the video section by section.
(4). Support the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.
(5). Screen refresh frequency is recommended to be 60HZ.
(6). Support single channel, double channel lamps.
(7). Use the autorun USB to transmit and control data, which is applied to both 32-bit and 64-bit operating systems.
(8). Data is transmitted based on standard Ethernet protocol and the transmission distance is up to 100 meters.
3. Connection Diagram
Connect a H803TV
Connect multiple H803TVs with DVI distributor
4. Accessories
DVI cable
USB cable
DC 9V adapter
5. Specifications
