Product Description

1. Introduction 　　

   H803SC is a LED controller that enable the LED lamp to play diverse effects with the rhythm and strength of music, drives up to 4096 pixels with two output ports. 　　

2. Support driver chips

 LPD6803, LPD8806, LPD6813, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, TM1812, TM1809, TM1804, TM1803, TM1829, TM1913, TM1914, TM1926, LX1003, LX2003, LX2006, DMX512, HDMX, APA102, P9813, DZ2809, INK1003, TLS3001, TLS3002, SM16711, SM16716, SM16726, LD1510, LD1512, LD1530, LD1532, MBI6021, MBI6023, MBI6024, etc.

   Auxiliary software is “LED Build Software”.

3. Performance

(1). Drive maximum 4096 pixels without *hmc file in SD card.

(2). Eight playback modes. Play diverse effects in accordance with strength and rhythm of music. Can also play DAT file.
(3). Supports microphone and earphone socket audio input
(4). SD card support FAT32 and FAT16 format, the maximum capacity is 64G bytes, stores up to 64 DAT files.
(5). IC type, clock frequency must be set in “LED Build Software”.

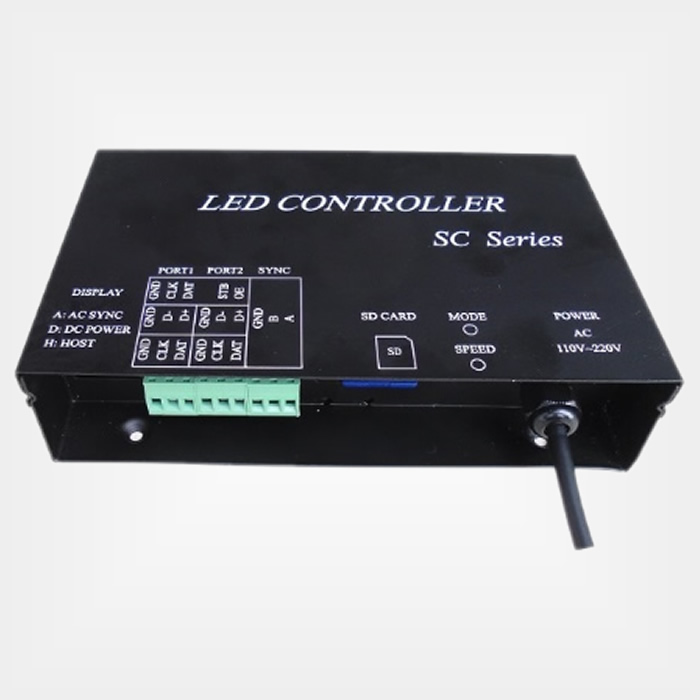

4. Product Display

5. Specifications
