Product Description

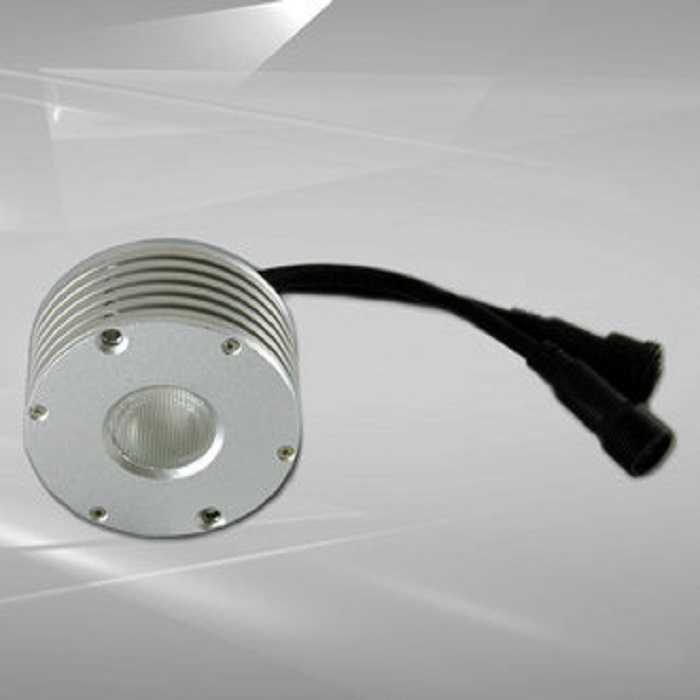

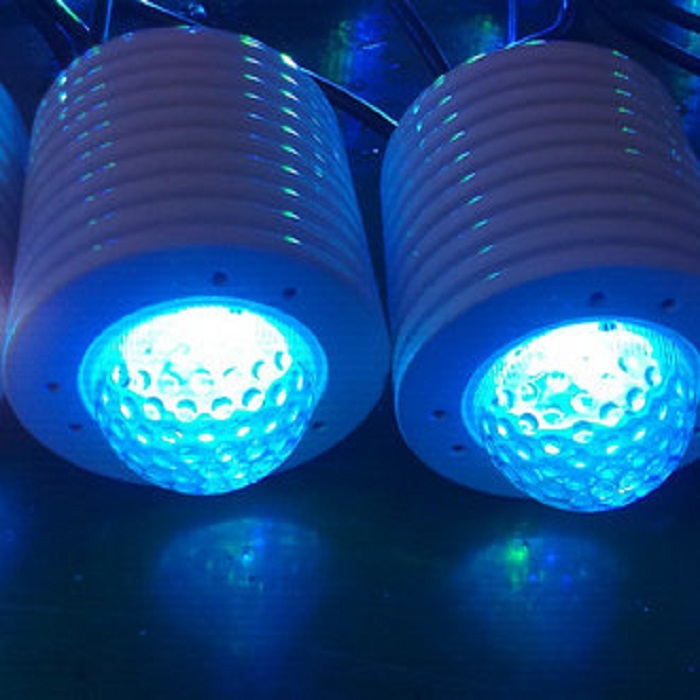

80mm High Power DMX Pixel Light
1：Diameter 80mm DC12V 3W. IP65
2：DMX pixel light

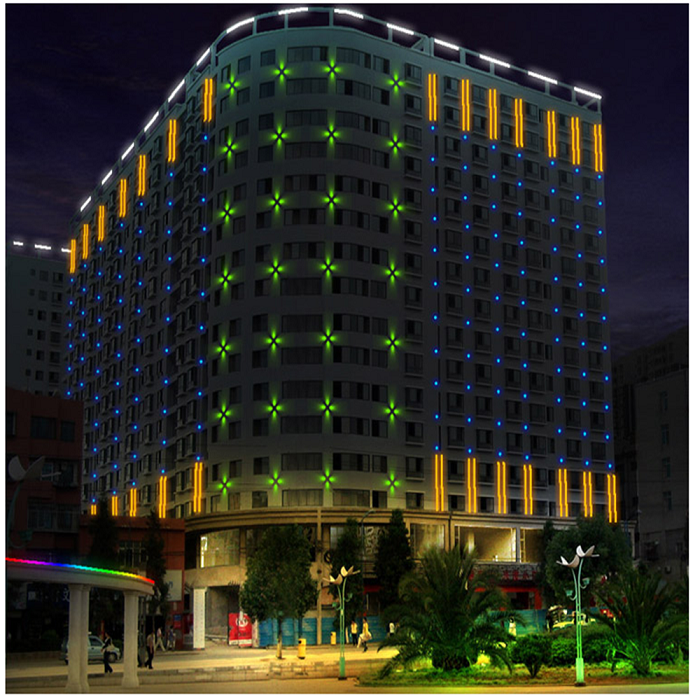

3：Pixel wall
4：Madrix Compatible sound controlled
5：High Power 3in1 LED
Detailed Specification:
| Parameters | Description: | |
| Product | 64mm Dot | 80mm Dot |
| Model No. | BD-DMX64DL-D3W1 | BD-DMX80DL-D3W1 |
| Diameter | 64mm | 80mm |
| LED QTY | 1pc 3in1 high power LED | 1pc 3in1 high power LED |
| Pixel QTY | 1 | 1 |
| View Angle | 120° | 70° |
| Voltage | DC12V | DC12V |
| Max Power | 3W | 3W |
| Max. Current | 190mA | 177mA |
| Housing | Milky | Dot |
| Color | RGB full color | RGB full color |
| Protocol | DMX512 | DMX512 |
| LED Source Life | 50'000 hours | 50'000 hours |
| Protection | IP65 | IP65 |
| Working Tem. | -20°c to 50°c | -20°c to 50°c |
| Net Weight | 0.21KG/PC | 0.27KG/PC |
| Gross Weight | 0.35KG/PC | 0.4KG/PC |
