Product Description

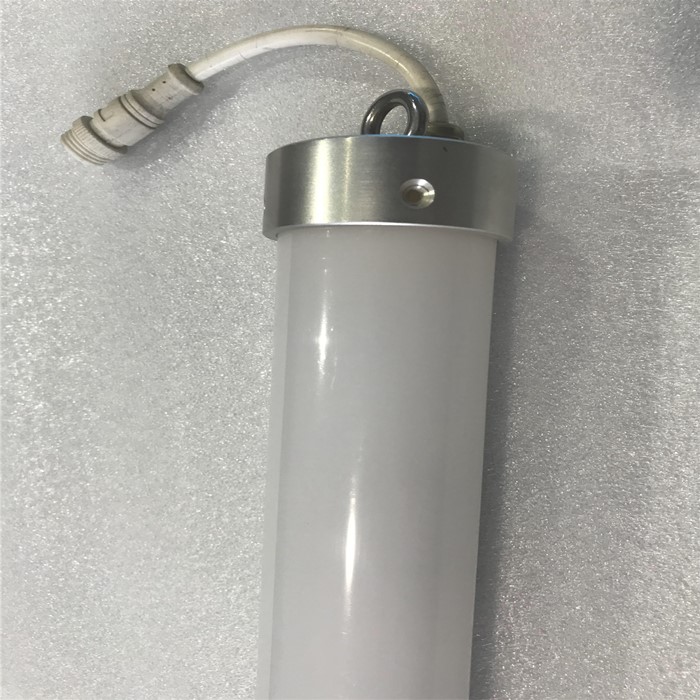

DMX 3D Magic Tube
0.5m/1m/1.5m for your choice
1：DC24V 11.52W 48 LEDs 8pixels
2：Madrix Compatible DMX 512 protocol
3：Music Controllable Sound Activated
4：Light and audio controlled synchronously.
5：Double side light source 360°viewing 3D effect
Detail Specification:
| Items | Product Description |
|||
Model No. |
LW-DMX3DVT-D3208 |
LW-DMX3DVT-D6416 |
LW-DMX3DVT-D9624 |
|
Dimension |
500 x 50mm |
1000 x 50mm |
1500 x 50mm |
|
LED QTY |
48pcs SMD RGB 5050 |
96pcs SMD RGB 5050 |
144 pcs SMD RGB 5050 |
|
Pixel QTY |
8 |
16 |
24 |
|
View Angle |
360° |
360° |
360° |
|
Voltage |
DC24V |
DC24V |
DC24V |
|
Max Power |
11.52W |
23W |
35W |
|
Address |
Manual address |
Manual address |
Manual address |
|
Color |
RGB Full color |
|||
Protocol |
DMX512 |
|||
LED Source Life |
50'000hours based on LED manufactures' test data |
|||
Housing |
Milky | |||
Protection |
IP44/IP65 |
|||
Working Tem. |
-20°c to 50°c |
|||
