Product Description

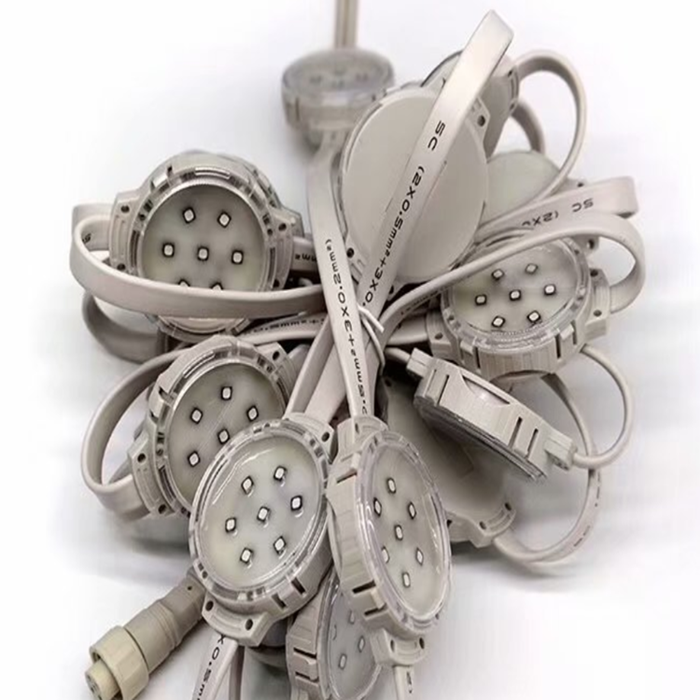

DMX LED Point Light
1：DC12V 0.72W Diameter 30mm.IP65
2： DMX512

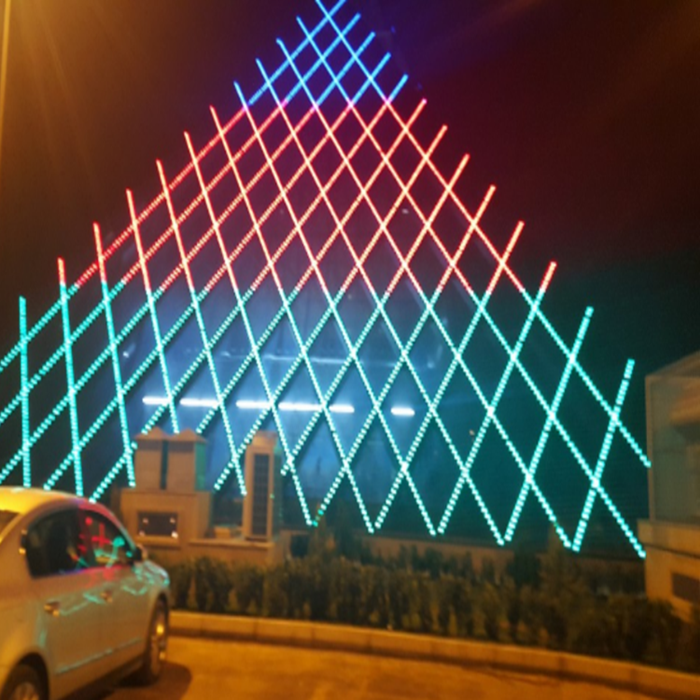

3：Landscape lighting
4：Light and audio controlled synchronously.
5：Sound activated music controllable
Detailed Specification:
Items |
Product Description |
|||
Product |
30mm Pixel |
40mm Pixel |
50mm Pixel |
70mm Pixel |
Model No. |
LW-DMX30PL-D0301 |
LW-DMX40PL-D0601 |
LW-DMX50PL-D0701 |
LW-DMX120DL-D1801 |
Diameter |
30mm |
40mm |
50mm |
70mm |
LED QTY |
3pcs SMD RGB 3535 |
6pcs SMD RGB 3535 |
7 pcs SMD RGB 3535 |
12pcs SMD RGB 5050 |
Pixel QTY |
1 |
1 |
1 |
1 |
View Angle |
180° |
180° |
180° |
180° |
Voltage |
DC12V |
DC24V |
DC24V |
24V |
Max Power |
0.72W |
1.44W |
1.44W |
3W |
Address |
Manual address |
Manual address | Manual address |
Manual address |
Housing |
Clear/Milky |
Clear/Milky |
Clear/Milky |
Milky / Crystal Diamond |
Color |
RGB Full color |
|||
Protocol |
DMX512 |
|||
LED Source Life |
50'000hours based on LED manufactures' test data |
|||
Protection |
IP65 |
|||
Working Tem |
-20°c to 50°c |
|||
Net Weight |
0.25KG/20pcs |
0.09KG/PC |
0.26KG/PC |
0.34KG/PC |
